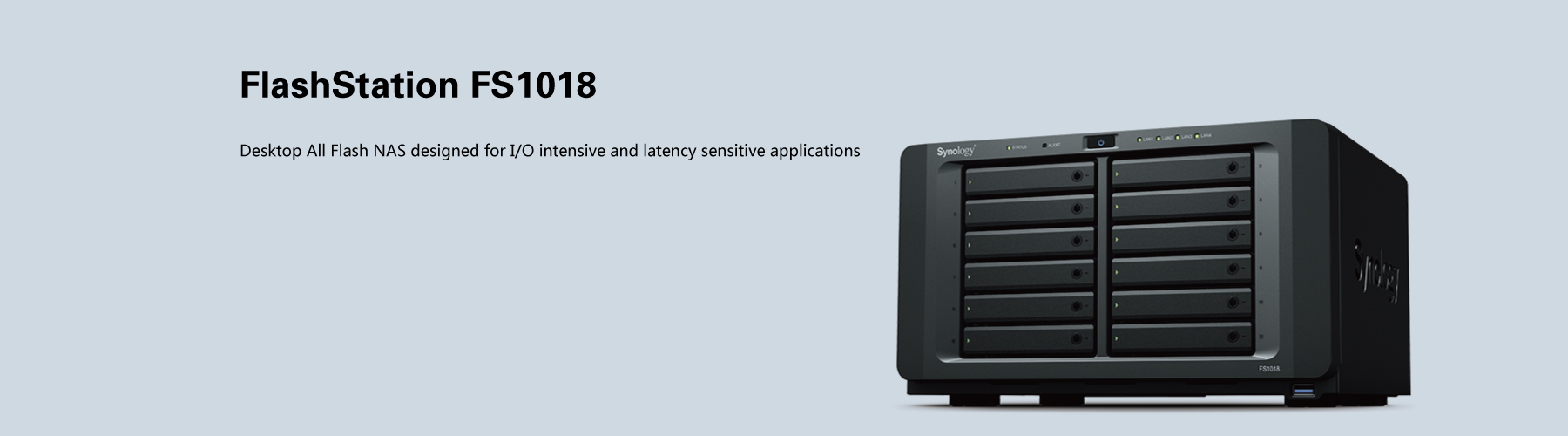

FS1018
The all-flash FS1018 is available in a desktop form factor and supports up to 12 2.5” SATA SSDs. Provides high IOPS for demanding work environments. Ideal for running business applications, virtualization and latency-sensitive applications.

Application Field

Ideal for running business applications such as mail services, virtualization, and latency-sensitive applications.

Product Features



Extraordinary performance but lightweight


The all-flash FS1018 is available in a desktop form factor and supports up to 12 2.5” SATA SSDs. Low latency, available

Provides high IOPS for demanding work environments. Ideal for running business applications such as mail services, virtualization, and latency-sensitive applications.


CPU: Dual core turbo frequency acceleration up to 2.6 GHz

Memory capacity: 8GB DDR4 ECC RAM, up to 32GB

High performance: over 40,000 times iSCSI 4K random write IOPS

Scalability: Up to two DX1215 expansion units can be connected





Expand storage capacity and accelerate performance


Four built-in Gigabit LAN ports allow the FS1018 to perform Link Aggregation and failover.

For environments that require high-speed transmission, adding an Ethernet add-on card can increase the data transfer speed to 10GbE.



GuangZhou Tian Ao Information Technology Co., Ltd.






5 year warranty


We are committed to improving product innovation and quality, and Synology guarantees a robust and reliable number with a 5-year limited warranty service.

Based on the management experience, it provides responsive technical support and hardware replacement services to maximize return on investment.


GuangZhou Tian Ao Information Technology Co., Ltd.





RAID F1


Due to the particularity of SSD and RAID technology, one of the common challenges currently facing is how to prevent all drives from being evenly loaded.

Assigned and failed at the same time. RAID F1 mitigates this by using a specially designed algorithm to distribute the load to the drive in an unbalanced manner.

One problem, which not only improves the storage capacity of the storage pool, but also ensures the security of the data.



GuangZhou Tian Ao Information Technology Co., Ltd.





Next-generation file system for data protection


The Btrfs file system uses more advanced storage technology. Prevent data corruption and reduce with optimized snapshot technology

Maintenance costs. Btrfs leverages flexible and efficient data protection and recovery tools while ensuring data integrity.


The shared folder and user quota system is flexible, providing full quota control over user accounts and shared folders

Snapshot Replication provides data protection that can be scheduled and saves storage capacity. Supports 1,024 shared folder backups and 65,000 system-wide snapshots

Ability to restore data at the file or folder level for faster data recovery and flexibility

Automatic self-healing file capability detects and recovers damaged files without user intervention


GuangZhou Tian Ao Information Technology Co., Ltd.





Virtual Machine Manager


Virtual Machine Manager lets you test new software in the sandbox, isolate the customer's machine, and increase the server's

flexibility. It's easy to run Windows, Linux, and Virtual DSM on your Synology NAS in just a few steps.





Certified storage virtualization solution


Synology iSCSI storage fully supports most virtual solutions, and an easy management interface increases productivity.

The integration of VMware vSphere 6 with VAAI helps offload storage operations and optimize computing efficiency.

Windows Offloaded Data Transfer (ODX) can greatly increase data transfer and migration rates.

Synology NAS supports OpenStack Cinder and can be used as a block class storage component.




GuangZhou Tian Ao Information Technology Co., Ltd.GuangZhou Tian Ao Information Technology Co., Ltd.



1
Status Indicator
2
Alert indicator
3
Hard disk status indicator
4
Hard disk tray lock
5
Power button and indicator
6
Network indicator
7
USB 3.0
8
fan
9
power supply
10
Kensington Security Slot
11
expansion
12
1GbE RJ-45 network
13
PCIe 3.0 slot
14
USB 3.0
15
Reset button

Operating System

Snapshot Replication Timed, real-time data protection ensures that shared folders and iSCSI LUNs are still available in the event of a disaster.
More
Synology MailPlus Create a secure, reliable private mail server with a intuitive, intuitive user interface.
More
Synology High Availability When a server fails, it seamlessly transitions between clustered servers to minimize the impact on the application.
More
Hyper Backup Block-level incremental backups, as well as inter-version deduplication, let you store multiple backup versions.
More
Management System Improve management efficiency and resiliency by managing multiple Synology NASs simultaneously through a centralized interface.
More
Cloud Station Automatically synchronize cross-platform data and import file versioning.
More

Technical Specifications

Product Model FlashStation FS1018
CPU Intel Pentium D1508
CPU Type 處理器架構:64-bit
處理器頻率:雙核心 2.2 (基準) / 2.6 (睿頻) GHz
SATA 2.5" SATA SSD
RAM 8 GB DDR4 ECC SO-DIMM
RAM Type Synology 保留根據供應商產品供貨情況,更換相同或更高頻率內存模塊的權利。其兼容性和穩定性都經過相同嚴格的測試檢驗,請用戶放心使用。
請選擇 Synology 內存模塊以獲得更好的兼容性和可靠性。如在內存擴充時使用了非 Synology 內存模塊,Synology 將不會提供全面的產品保證或技術支持。
RAM Characteristics 預安裝內存模塊:8 GB (8 GB x 1)
內存 可擴充至:32 GB (16 GB x 2)
Number Of RAM Slots 2
Internet 4 (支持 Link Aggregation / 故障移轉)
Power Supply 250W
Voltage 100 V 至 240 V AC
Power Supply Ccharacteristics 電流頻率:50/60Hz, 單頻
Storage Function 最大存儲空間數:1,024
最大 iSCSI Target 數:256
最大 iSCSI LUN 數:512
Storage Management 1,024
Storage_device RAID F1
Basic
JBOD
RAID 0
RAID 1
RAID 5
RAID 6
RAID 10
File System 內部磁盤:Btrfs/EXT4
外接磁盤:
Btrfs
EXT4
EXT3
FAT
NTFS
HFS+
exFAT*
PCI-E 1 x Gen3 x8 slot (x8 link)
FPS H.264 2250 FPS @ 720p (1280x720)
1050 FPS @ 1080p (1920x1080)
600 FPS @ 3M (2048x1536)
450 FPS @ 5M (2591x1944)
320 FPS @ 4K (3840x2160)
FPS MJPEG 600 FPS @ 720p (1280x720)
360 FPS @ 1080p (1920x1080)
240 FPS @ 3M (2048x1536)
192 FPS @ 5M (2591x1944)
Shape Appearance 166 mm x 282 mm x 243 mm
Max Connections 40
Certification EAC
VCCI
RCM
KC
FCC
CE
BSMI
Surroundings 符合 RoHS 標準
Temperature 工作溫度:5°C 至 40°C (40°F 至 104°F)
存儲溫度:-20°C 至 60°C (-5°F 至 140°F)
相對濕度:5% 至 95% RH
Dimensions 166 mm x 282 mm x 243 mm
Optional 監控裝置授權
D4ECSO-2400-16G DDR4 ECC SO-DIMM*
擴充設備: DX1215 X 2
Synology 以太網適配器 E10G17-F2
Synology 以太網適配器 E10G18-T1
Synology 以太網適配器 E10G18-T2
Synology M2D18 M.2 SSD 適配器卡
VS360HD
VS960HD
Weight 5.2 公斤
Warranty 5年
