Application Field
Cloud service provider, providing infrastructure as a service (IaaS)
Platform as a Service (PaaS) and Software as a Service (SaaS)
Data Center, Internet Data Center (IPDC)
Web hosting, web services, audio, video, website exchange SSL encryption
Product Features
Powerful storage solution

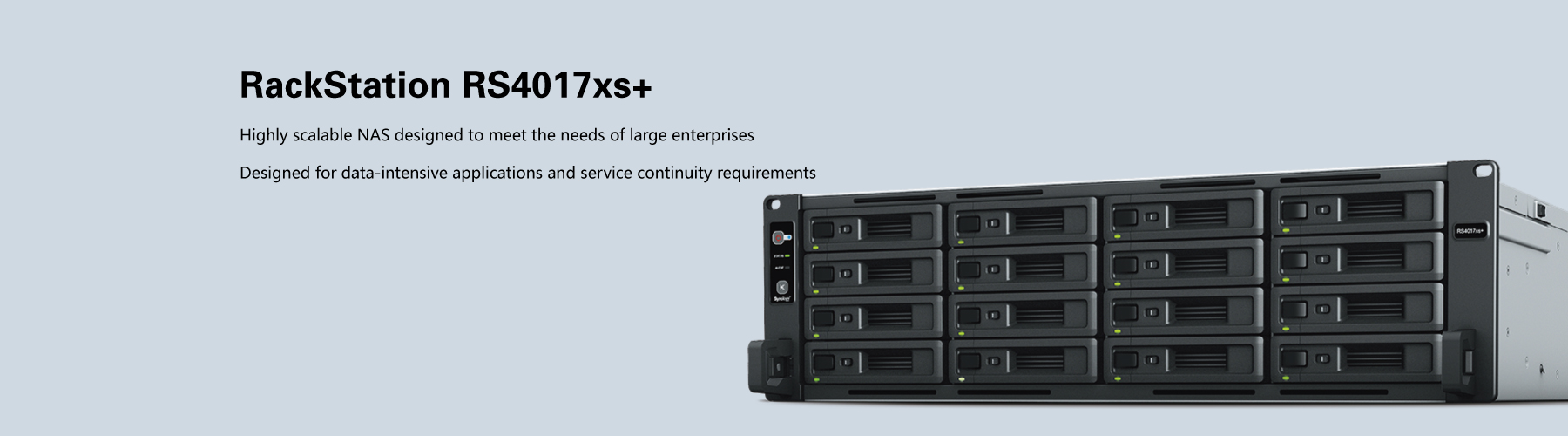

The RS4017xs+ is a reliable storage solution that delivers over 844,000 IOPS and 5,900 MB per second continuous read speed 1
DDR4 ECC UDIMMs and 10GbE connectivity ensure data accuracy and performance in mission-critical environments.
CPU: Intel? Xeon? D-1541 8-core processor
RAM option: 8 GB DDR4 ECC UDIMM up to 64 GB
Network: 2 10GBase-T ports, optional 10GbE NIC support
Chassis: 3U chassis design, 16 SATA hard drive slots
Efficient scalability and reliability
After connecting the RS4017xs+ to two Synology expansion units, the RX1217 or RX1217RP2,
The storage capacity can be further expanded without interrupting the service, so that the total number of hard disks reaches 40.
Certified storage virtualization solution
Synology iSCSI storage fully supports most virtual solutions, and an easy management interface increases productivity.
The integration of VMware vSphere 6 with VAAI helps offload storage operations and optimize computing efficiency.
Windows Offloaded Data Transfer (ODX) can greatly increase data transfer and migration rates.
Synology NAS supports OpenStack Cinder and can be used as a block class storage component.
Btrfs: Next generation storage efficiency
The Btrfs file system uses more advanced storage technologies to meet the management needs of large modern enterprises:
The shared folder/user quota system is flexible and provides full quota control for all user accounts and shared folders.
Snapshot Replication provides scalable, storage-capable data protection with 1,024 shared folder backups and 65,000 system snapshots.
Data recovery at the file or folder level for fast and flexible data recovery.
Automatic file self-healing capabilities detect and recover corrupted files without user intervention.
5 year warranty
We are committed to improving product innovation and quality, and Synology guarantees a robust data management experience with a five-year limited warranty.
This provides responsive technical support and hardware replacement services to maximize your return on investment.
Operating System
Synology MailPlus
Create a secure, reliable private mail server with a intuitive, intuitive user interface.More
Synology High Availability
When a server fails, it seamlessly transitions between clustered servers to minimize the impact on the application.More
Hyper Backup
Block-level incremental backups, as well as inter-version deduplication, let you store multiple backup versions.More
Management System
Improve management efficiency and resiliency by managing multiple Synology NASs simultaneously through a centralized interface.More
Cloud Station
Automatically synchronize cross-platform data and import file versioning.More
Collaboration Suite
Diverse multimedia management, streaming and playback solutions.More
Technical Specifications
RAID 組態遷移：Basic to RAID 1、Basic to RAID 5、RAID 1 to RAID 5、RAID 5 to RAID 6
SSD TRIM：√
RAID Group：√
外接磁盤：Btrfs、EXT4、EXT3、FAT、NTFS、HFS+、exFAT*
注：exFAT Access 需從套件中心另行購買。
附加卡支持：PCIe 網絡接口卡?
2250 FPS @ 1080p (1920×1080)
900 FPS @ 3M (2048x1536)
800 FPS @ 5M (2591x1944)
440 FPS @ 4K (3840x2160)
600 FPS @ 1080p (1920×1080)
350 FPS @ 3M (2048x1536)
220 FPS @ 5M (2591x1944)
RJ-45 10GbE 網絡孔：2個 (支持 Link Aggregation / 故障移轉)
USB 3.0 端口：2個
擴充端口：2個
VCCI
CCC
RCM
KC
FCC
CE
BSMI
存儲溫度：-20°C 至 60°C (-5°F 至 140°F)
相對濕度：5% 至 95% RH
噪音值測試環境：Seagate 2TB ST2000VN000 硬盤在待機狀態下，以?xún)芍?G.R.A.S. Type 40AE 麥克風分別架設于 Synology NAS 前后各距離 1 公尺處；背景噪音值：16.49-17.51 dB(A)；溫度：攝氏 24.25-25.75 度；濕度：58.2-61.8%。
