產品特性

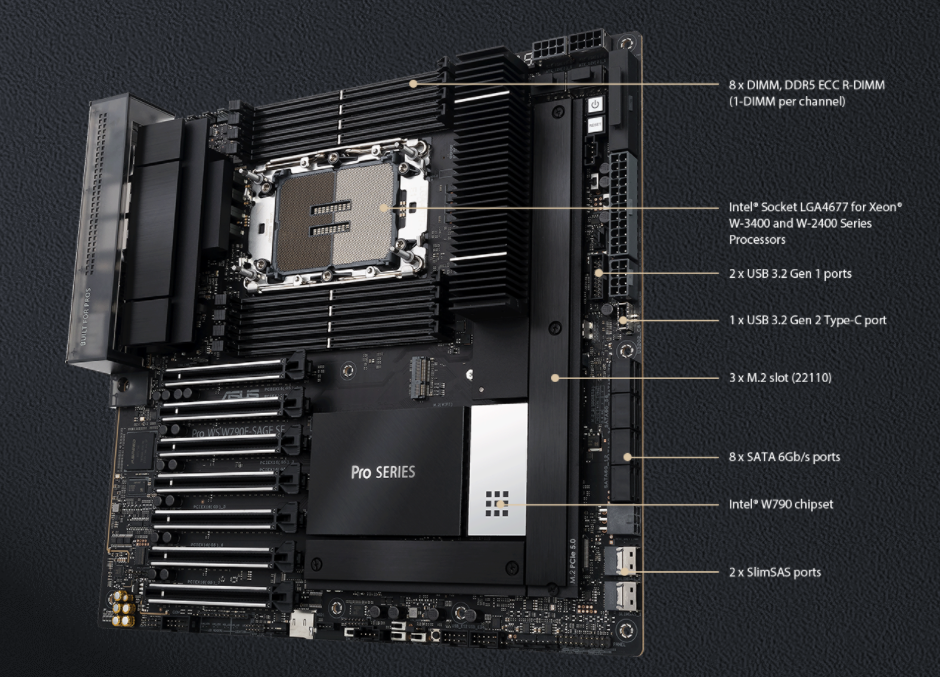

Intel? W790 (LGA 4677) EEB 工作站主板, PCIe 5.0 x16, M.2, 雙 10G LAN, 服務器級遠程管理, 14+1+1 供電模組, USB 3.2 Gen 2x2 Type-C?
Intel? LGA 4677 插槽: 支持英特爾至強? W-3400 & W-2400 處理器

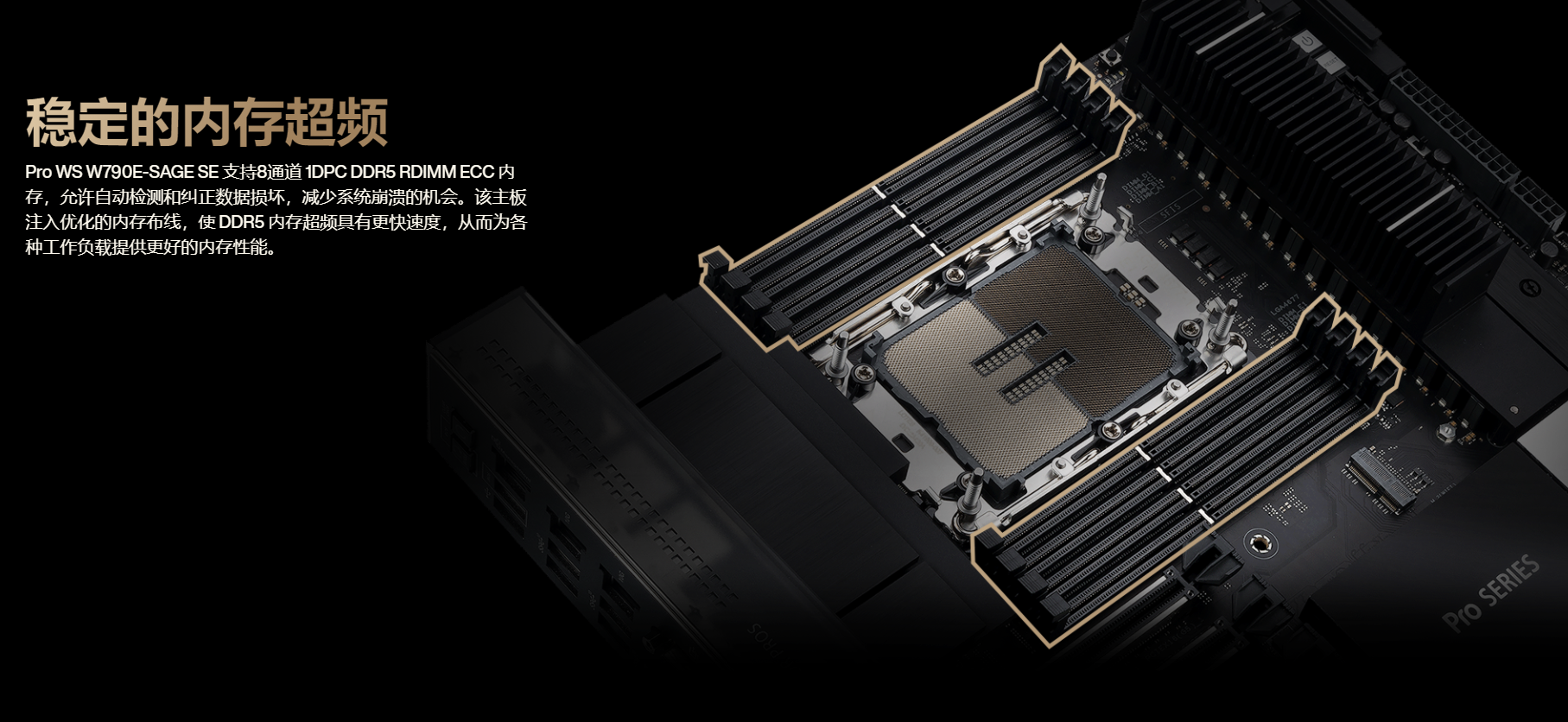

CPU 和內存超頻: 支持高達 2TB ECC R-DIMM DDR5 內存(1DPC)

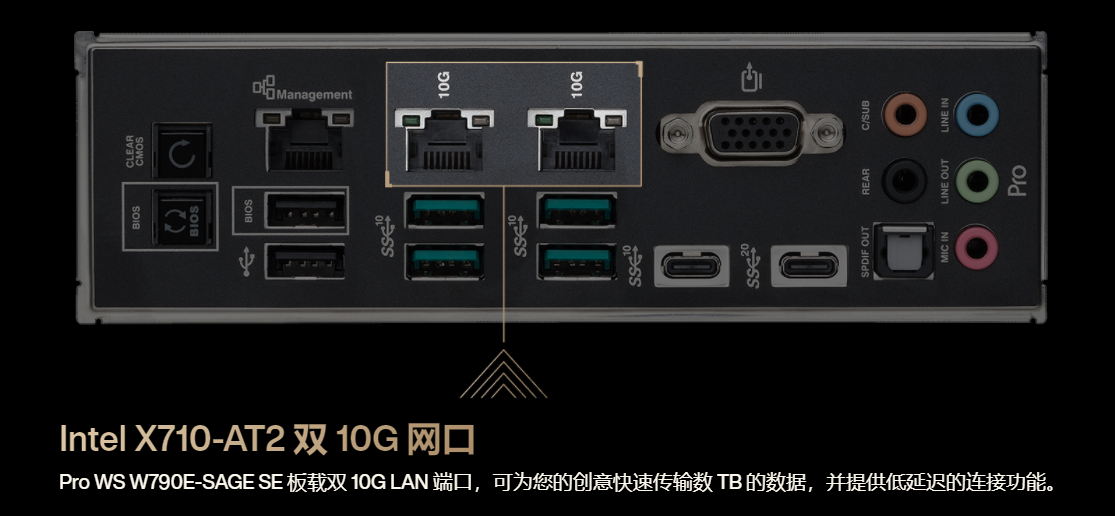

疾速互聯: 7個 PCIe 5.0 x16 插槽, 雙 Intel X710-AT2 10G LAN, 3 M.2, USB 3.2 Gen 2x2 Type-C? 和 2 SlimSAS
服務器級 IPMI 遠程管理: 包括硬件和軟件層級, 并以專屬 LAN 網口鏈接至 AST2600 BMC 控制器, 外加實時監控和管理軟件 – ASUS Control Center Express

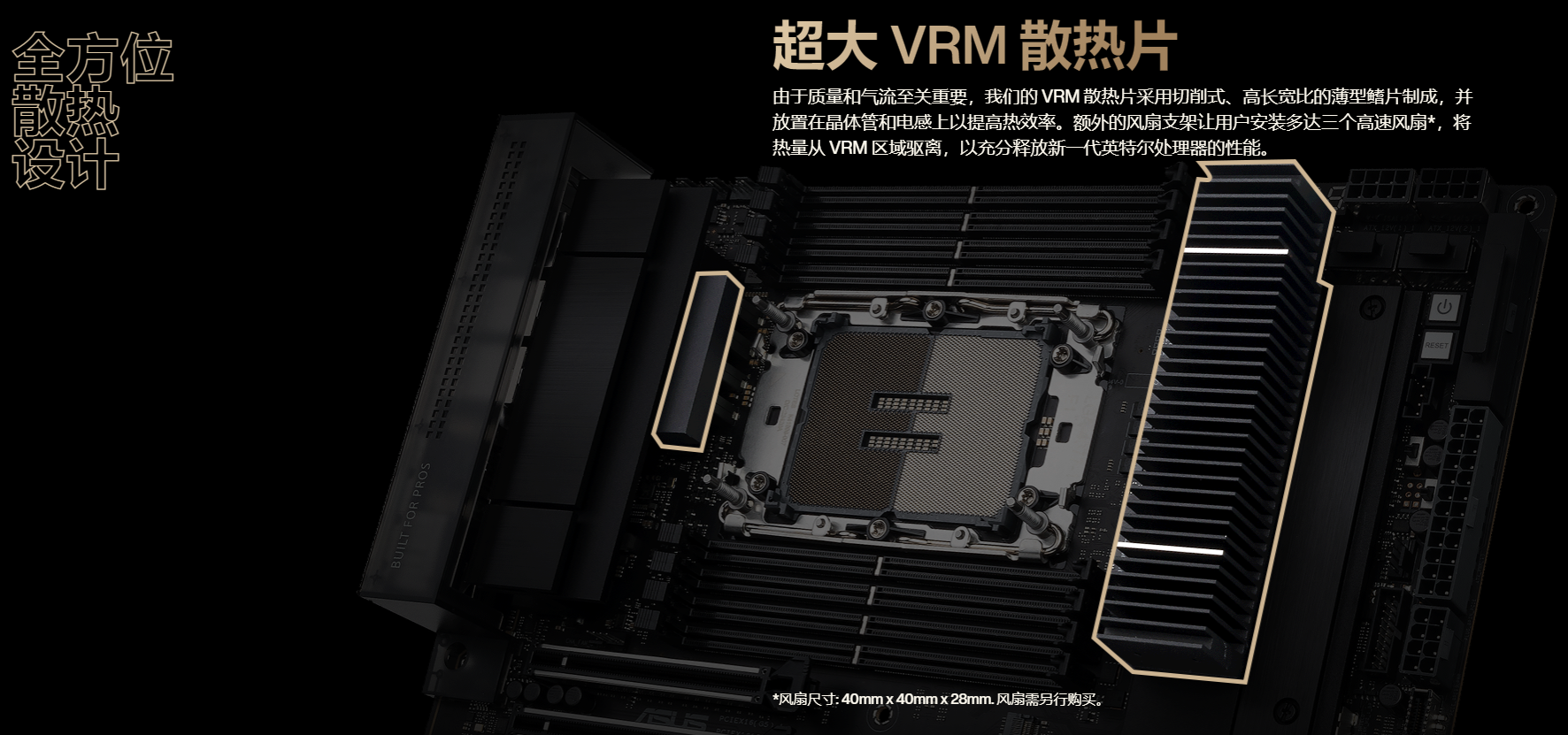

強大的供電與散熱設計: 14+1+1 供電模組, 8-pin 和 6-pin PCIe 供電接口, 超大 VRM, 芯片, M.2 散熱片和 M.2 背板
值得信賴的穩定性: 高度兼容于先進的技術，堅實的 QVL 列表，24/7 可靠運行，具備廣泛的兼容性
高性能計算解決方案
Pro WS W790 系列工作站主板專為創作者、開發人員和工程師而量身打造，全面釋放新一代 Intel Xeon 處理器的強大潛能，通過具備 CPU 和內存超頻能力。Pro WS W790 系列擁有優化的內存布線、先進的供電模組設計、服務器級 IPMI 遠程管理以及超快的 PCIe 5.0 和網絡連接，實現精湛工藝與精致美學的高度融合。
ASUS W790 主板以精心準備的各項硬件驗證超越一般產品、協助確保您的工作站可支持各種內存、散熱器、機箱、電源及其他設備。
功能優先美學
低調的專業精神
Pro WS W790 采用金屬黑色鋁擠壓件、帶有凸顯細節的不銹鋼黑色網格，以及透明煙灰色 I/O 外蓋，為內容創作者呈現專業且低調的外觀。
多 GPU 支持
Pro WS W790E-SAGE SE 具備7個 PCIe? 5.0 x16 插槽，可用于大功率顯卡，可在專業設計、建模、仿真和渲染應用程序中增強性能。

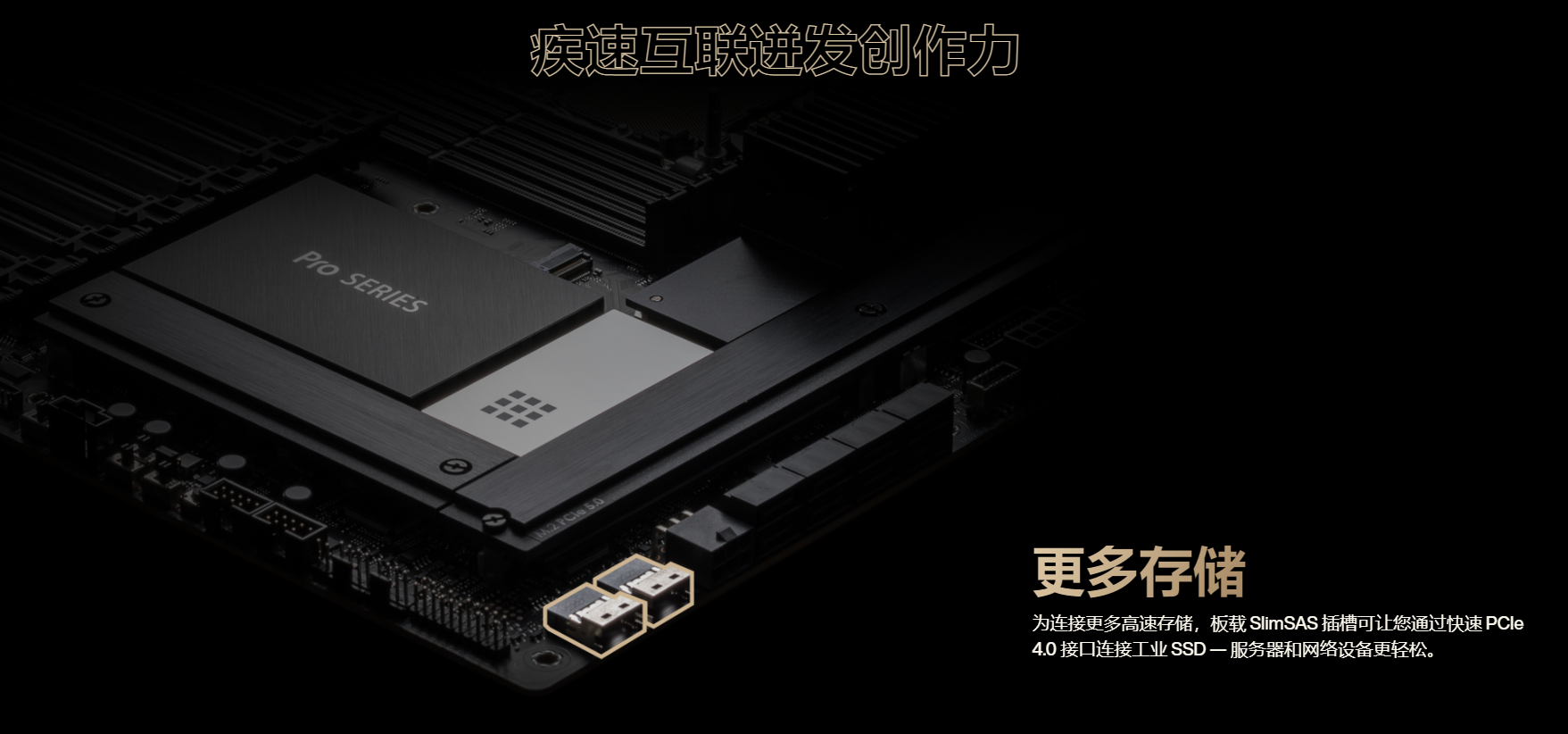

疾速互聯迸發創作力

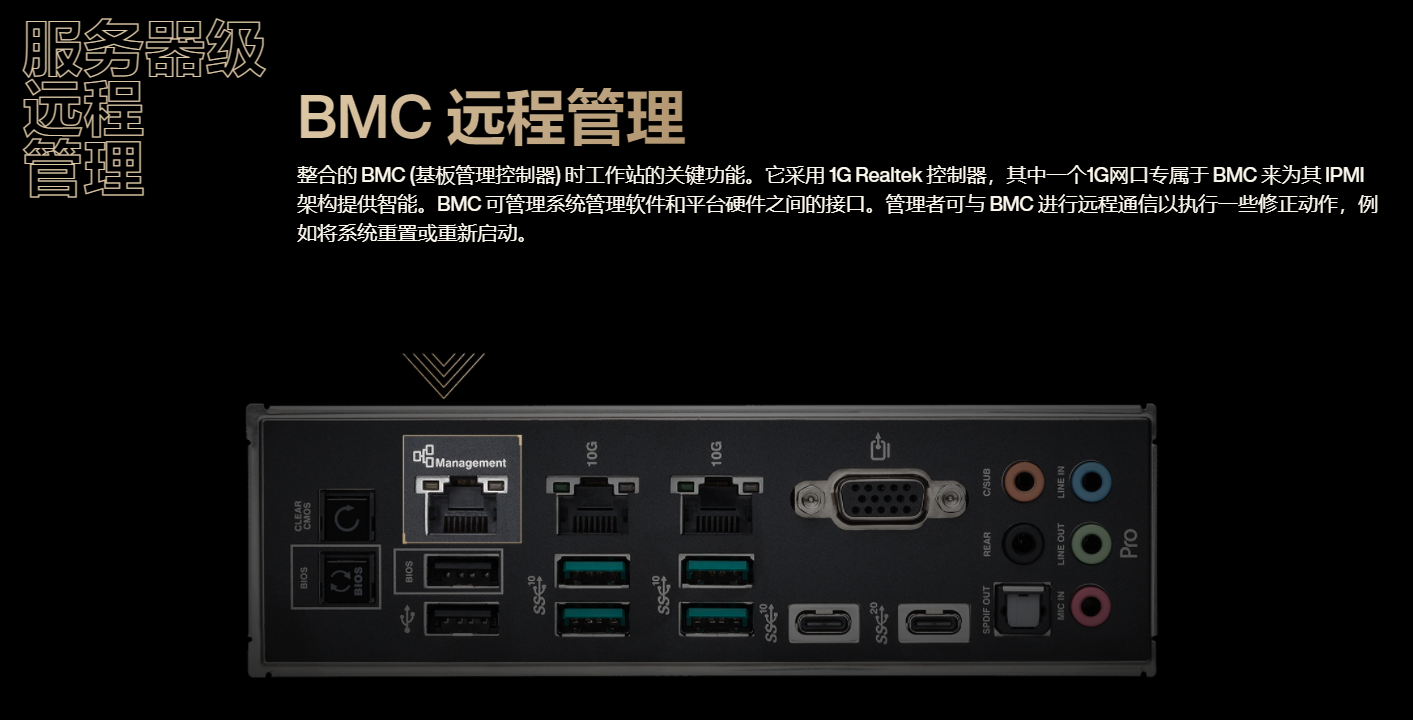

服務器級遠程管理

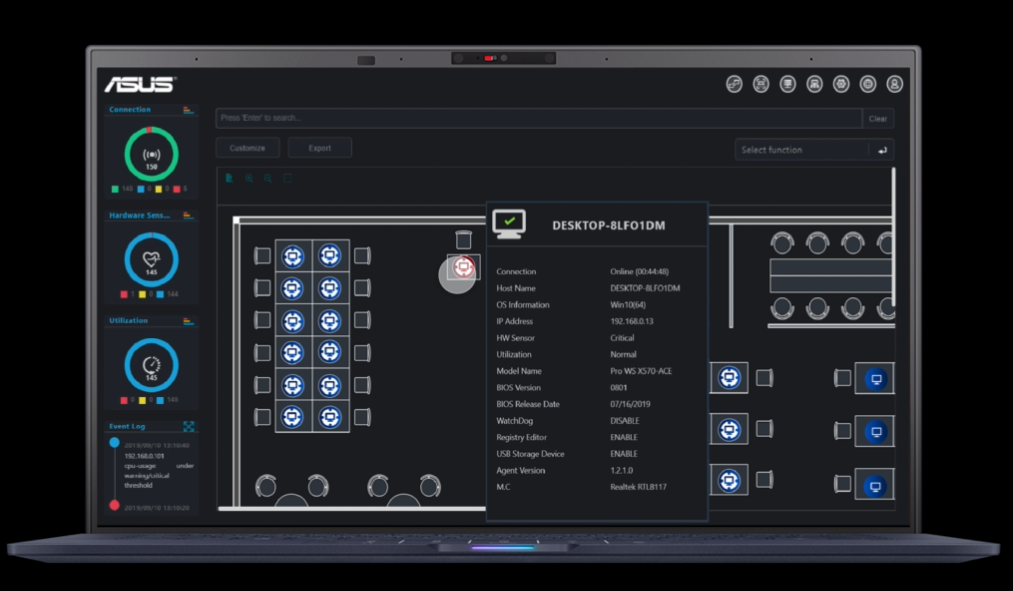

ASUS Control Center Express
Pro WS W790E-SAGE SE 采用 ASUS Control Center Express - 專為企業設計的實時 IT 監控和管理軟件，可提高生產力并增強安全性，有助于防止未經授權的訪問和數據泄漏。
沉浸式音效體驗
Realtek S1220A 7.1 音頻芯片具有高質量的 120 dB SNR 立體聲播放輸出和 113 dB SNR 錄音輸入，可提供純凈的音頻質量，并具備 EMI 遮蔽和獨立 PCB 層，使左右聲道維持信號完整性。
預整流芯片
減少電源輸入噪聲，確保性能一致。
音頻屏蔽線
隔離模擬/數字信號領域，大幅降低多重橫向干擾。
整合式放大器
可驅動高阻抗耳機，完整呈現高低頻。
左右聲道分層隔離設計
確保音頻通道有較少的串?dāng)_。
消除噪音電路
減少音效輸出因啟動而發出的爆音。
高品質音頻電容
高品質組件提供溫暖、自然與身臨其境的音頻，讓您享受特別清晰和高保真的音響效果。
可靠的穩定性
出色的可靠性
24/7 可靠性
ASUS Pro WS W790 系列專為全天候運作優化，在高達 45°C 的溫度和高達 80% 的濕度下進行測試，確保它可以在各種環境中正常運行。
技術規格
Intel? Socket LGA4677 for Xeon? W-3400 and W-2400 Series Processors*
Supports Intel? Turbo Boost Max Technology 3.0
* Refer to www.asus.com for CPU support list.
512 Mb Flash ROM, UEFI AMI BIOS

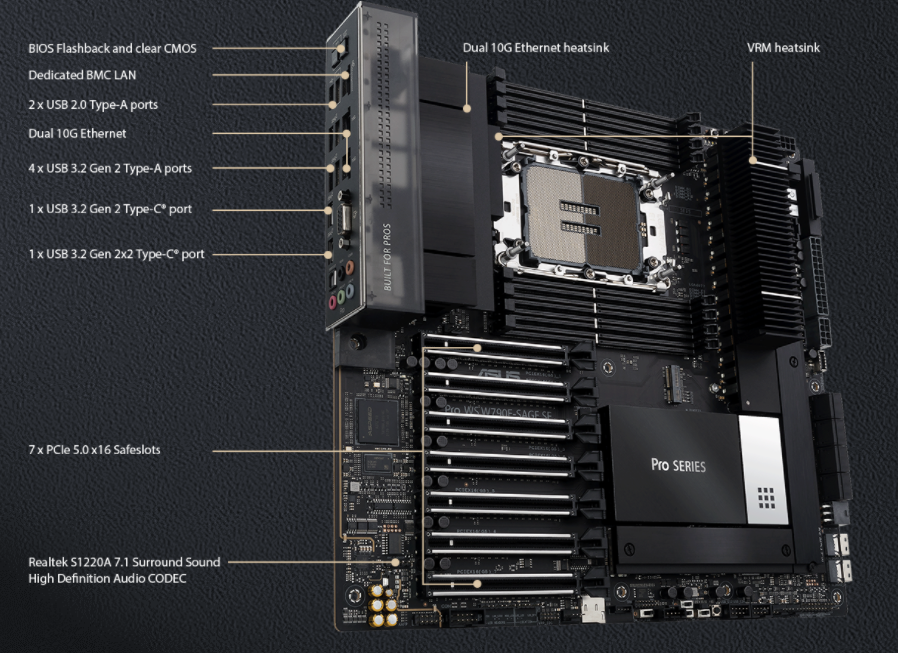

Rear USB (Total 8 ports)

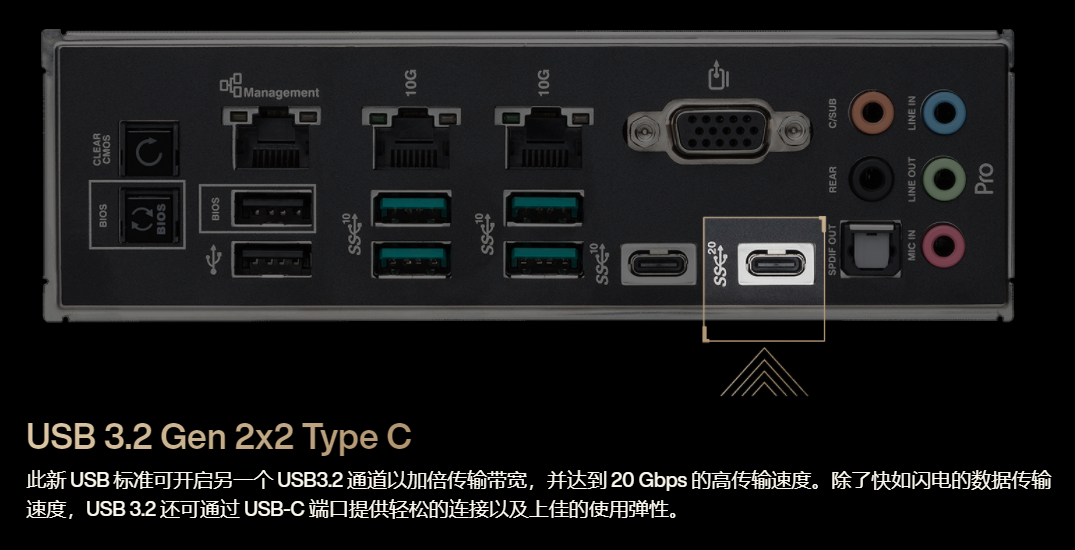

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C?)
5 x USB 3.2 Gen 2 port(s) (4 x Type-A + 1 x USB Type-C?)
2 x USB 2.0 port(s) (2 x Type-A)
Front USB (Total 7 ports)

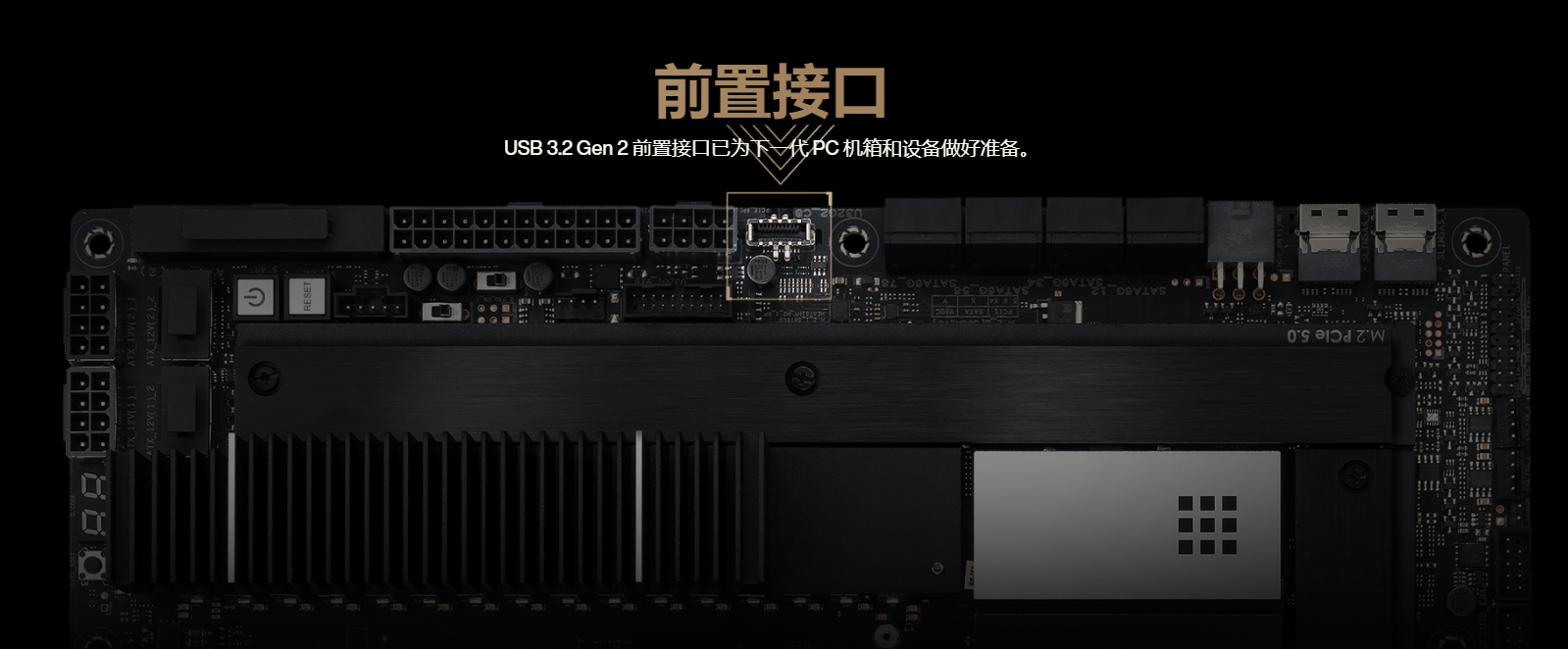

1 x USB 3.2 Gen 2 connector (supports USB Type-C? )
1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
8-Channel Memory Architecture
Supports Intel? Extreme Memory Profile (XMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
Intel? Xeon? W-3400 Series Processors*
7 x PCIe 5.0 slot(s) (Seven at x16/x16/x16/x16/x16/x8/x16)**
Intel? Xeon? W-2400 Series Processors*
4 x PCIe 5.0 slot(s) (Four at x16/x16/x16/x16)**
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Please refer to the block diagrams in the Appendix for more details.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
5 x 4-pin Chassis Fan header(s)
1 x W_PUMP+ header(s)
Power related
2 x 24-pin Main Power connector
4 x 8-pin +12V Power connector
1 x 8-pin PCIe Power connector
1 x 6-pin PCIe Power connector
Storage related
3 x M.2 slots (Key M)
2 x SlimSAS connector(s)
8 x SATA 6Gb/s ports
1 x VROC Key connector
USB
1 x USB 3.2 Gen 2 connector (support(s) USB Type-C? )
1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
Miscellaneous
1 x COM Port header
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x LN2 Mode jumper
1 x M.2 slot (Key E)
1 x ReTry button
1 x Safe Boot button
1 x SPI TPM header (14-1pin)
1 x Start button
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
BMC Related
1 x BMC switch
1 x VGA switch
1 x BMC LAN fixed IP switch
1 x IPMI switch
2 x Q_PSU switch
2 x PSU SMBus header
1 x Front panel location LED header
1 x Location button header
1 x VPP_I2C header
1 x Micro SD card socket
1 x BMC_T_SENSOR header
1 x BMC LED
1 x Location LED
1 x Message LED header
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
5 x USB 3.2 Gen 2 port(s) (4 x Type-A + 1 x USB Type-C?)
2 x USB 2.0 port(s) (2 x Type-A)
1 x VGA port
2 x Intel? dual 10Gb Ethernet ports
1 x Realtek 1Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack? button
1 x Clear CMOS button
Windows? 11, Windows? 10 64-bit
Extreme OC Kit
- FlexKey button
- LN2 Mode
- ReTry button
- Safe boot button
- Start button
Extreme Engine Digi+
- 10K Black Metallic Capacitors
- MicroFine Alloy Choke
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-Code
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- Steel backplate
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack? button
- BIOS FlashBack? LED
- Caterr1 LED
- Box Headers
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Bespoke Motherboard Design & Business Focused Features
- 24/7 Reliability
- Overcurrent Protection
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Power pre-regulator reduces power input noise to ensure consistent performance
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1
Surround Sound audio.
Cables
4 x SATA 6Gb/s cables
1 x Thermistor cable pack
Miscellaneous
1 x VRM Fan holder
1 x Q-connector
1 x M.2 Rubber Package(s)
1 x M.2 backplate Rubber Package(s)
1 x Screw package for M.2 Key E
1 x CPU guard for LGA 4677 E1A
1 x CPU guard for LGA 4677 E1B
Documentation
1 x ACC Express Activation Key Card
1 x User guide
EEB Form Factor
12 inch x 13 inch (30.5 cm x 33 cm)
